Hard sheets extruded polyvinyl chloride

MEFLAM (PVC-U)

Fire safety certificates

CountryStandardClassification
GermanyDIN 4102B1
FranceNFP 92-512M1
Great Britain (UK)BS 476/71Y
EU standardEN 13501B-s3, d2
USAUL94V0

Features

  • Fire protection certificates
  • self-extinguishing and meet the highest requirements of international fire protection standards for plastic products
  • General test certificate issued by the building authorities
  • high chemical resistance
  • conditionally thermoformable
  • good welding and bonding properties
  • application temperature up to +60 °C
  • fire class DIN 4102-B1 on request (MEFLAM)
  • good machinability
  • electrical insulating properties
  • printable
  • weather resistant
  • smooth surface

Please clarify fire protection certificate and classification before ordering!

Application

  • Apparatus and tank construction
  • Electroplating plants
  • Chemical and laboratory technology
  • Mechanical engineering
  • Photo industry
  • deep drawing
  • industrial exhaust air technology
  • electrical switchboard construction
  • bellows
  • lining of sewage treatment plants
  • water treatment plants

Standard dimensions

  • 2000 x 1000 x 1 - 50 mm
  • 3000 x 1500 x 1 - 30 mm
  • 2440 x 1220 x div. thicknesses
  • 4000 x 2000 x 3 - 7 mm
  • Other colors, dimensions and thicknesses on request.

Colors

Dark gray

approx. RAL 7011

Light gray

approx. RAL 7035

White

approx. RAL 9010

White

approx. RAL 9016

Black

approx. RAL 9011

Red

approx. RAL 3000

Ivory

approx. RAL 1014

Blue

approx. RAL 5010

Green

approx. RAL 6005

Yellow

approx. RAL 1021

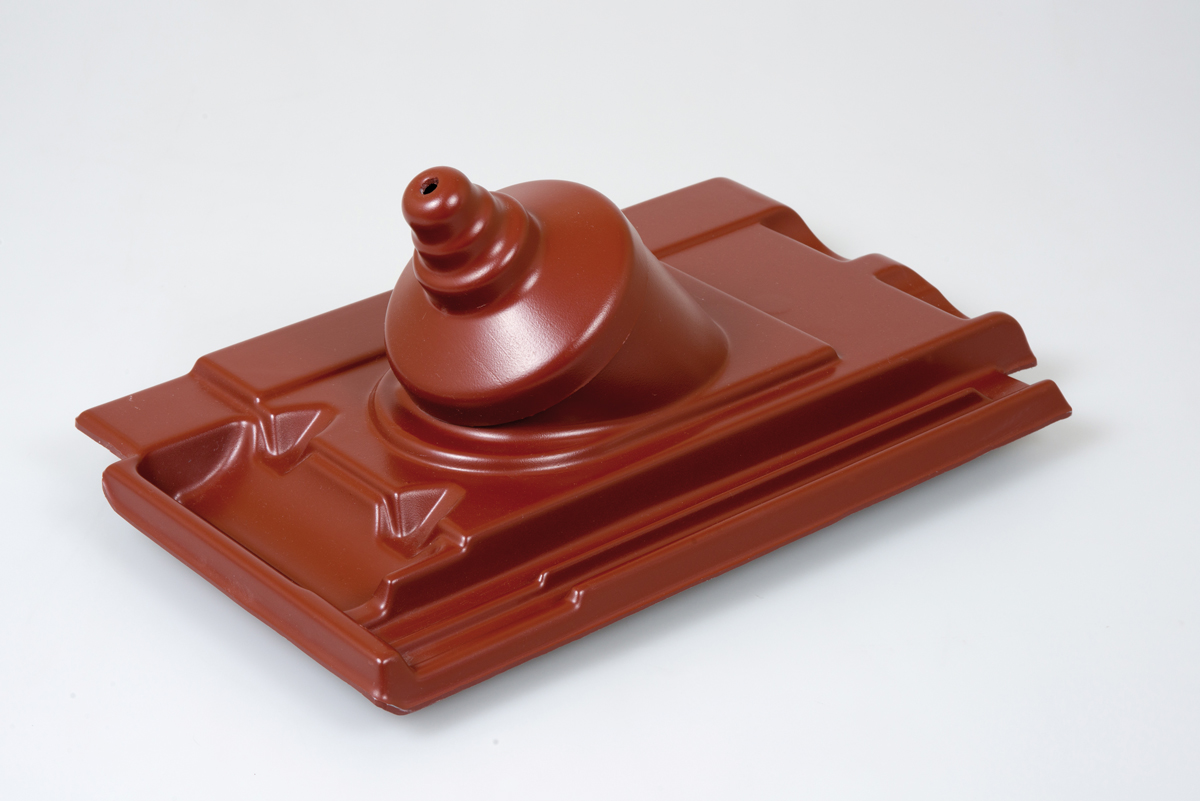

Roof tile
