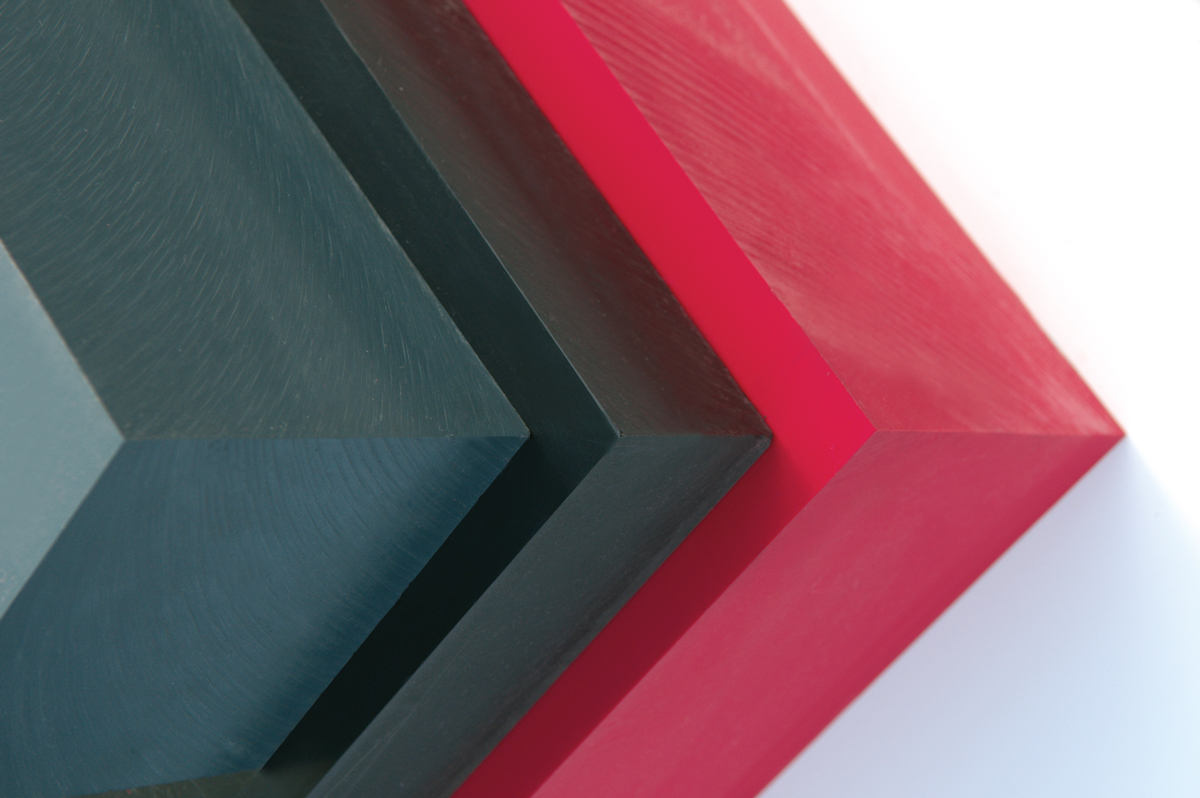

Hard plates pressed polyvinyl chloride

MEDUR Press (PVC-U pressed)

Features

  • low stress
  • special mechanical properties
  • operating temperature from -20 to +60 °C
  • plus tolerance in thickness
  • high chemical resistance
  • good weldability and adhesiveness

Application

  • Mechanical components
  • Apparatus engineering
  • Electrical industry
  • Laboratory equipment

Standard dimensions

  • 2000 x 1000 x 1 - 120 mm
  • We can offer you various blanks in thicknesses 60 - 100 mm.

Colors

Dark gray

approx. RAL 7011

Black

approx. RAL 9011

Red

approx. RAL 3000

Stock overview, weight list, packaging units



Pressed

Pressed

2000 x 1000 mm

2000 x 1000 mm

mm

kg/board

boards/pallet

Colors

kg/board

boards/pallet

Colors

1

2,94

40

117,60

2

5,88

45

132,30

3

8,82

50

147,00

5

14,70

55

161,70

8

23,52

60

176,40

10

29,40

65

191,10

12

35,28

70

205,80

15

44,10

75

220,50

20

58,80

80

235,20

25

73,50

100

294,00

30

88,20

110

323,40

35

102,90

120

352,80



Marked articles are standard articles and available from stock, subject to prior sale. Other colors and dimensions on request.
